Ergo-Arms®
Ergo-Arm® Parallel Air Cylinder Series
Air Cylinder Series
EXPLODED PARTS VIEW
AD-D1098-PAC
Call for Price
Please see below for
required and/or optional accessories

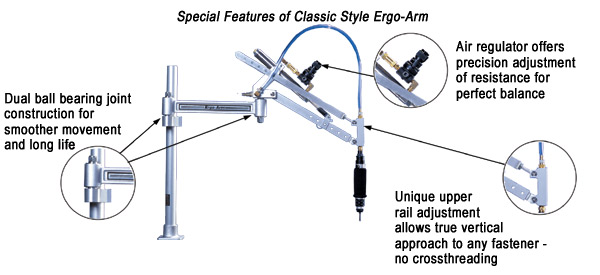

All Classic Ergo-Arms rotate on mounting post 180
o
and allow a reach of 4 - 30 inches through the incorporation of a two piece articulating arm. Ergo-Arms provide ergonomic support for electric and pneumatic tools, reduces operator fatigue and increases productivity, consistency, and accuracy.
Features
Reduce operator fatigue and increase productivity with the ERGO-ARM
®
ergonomic tool support sytem series
Limits operator influence
Use with inline pneumatic tool
Vertical screw application
Arm movement is up-down and 180
o
side-side
Dial regulator provides easy adjustment of counterbalance
Power source for arm is pneumatic (air line is required)
ERGO-ARM Tool Support Systems Operations Manual
Specifications:
Model:
AD-D1098-PAC
Capacity - lbs:
0-15
Maximum Torque* - in lbs:
110
Reach - in:
4-33
Optional Accessories
Wall Clamp for Classic Ergo-Arm
®
Quote
Bench Clamp for Classic Ergo-Arm
®
Quote
